(n)certainties – Columbia – Fall 2008

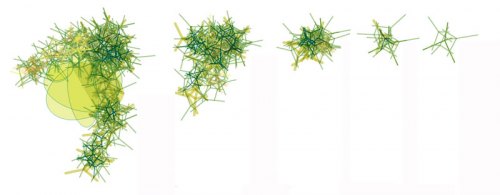

Option Explicit

‘Script written by <Matthew Lutz>

‘Script version Monday, October 06, 2008 11:47:41 PM



Dim triangleCrv, vertexPts, endpt1, endpt2, endpt0, newSpicule, gens, origPt, origPtCoord, objArr

Dim attractorPt, threshDist, strLeg, strSphere, scaleFact, testSphere1, testSphere2, testSphere3



Call SpiculeGenerator()

Sub SpiculeGenerator()

Rhino.EnableRedraw False

gens = Rhino.GetReal(“How many generations?”, 50)

‘threshDist = Rhino.GetReal(“What is the threshold distance?”, 20)

origPt = Rhino.GetObject(“choose a starting point”, 1)

attractorPt = Rhino.GetObject(“choose an attractor point”, 1)

scaleFact = Rhino.GetReal(“Unit scale factor?”, 1)

testSphere1 = Rhino.GetObject(“choose the first sphere”,

testSphere2 = Rhino.GetObject(“choose the second sphere”,

testSphere3 = Rhino.GetObject(“choose the third sphere”,

origPtCoord = Rhino.PointCoordinates (origPt)

attractorPt = Rhino.PointCoordinates (attractorPt)

endPt0 = Rhino.AddPoint (Array(origPtCoord(0), origPtCoord(1) + (scaleFact * 1.5), origPtCoord(2)))

endPt1 = Rhino.RotateObject (endPt0, origPtCoord, 120.0, , True)

endPt2 = Rhino.RotateObject (endPt1, origPtCoord, 120.0, , True)



endPt0 = Rhino.PointCoordinates (endPt0)

endPt1 = Rhino.PointCoordinates (endPt1)

endPt2 = Rhino.PointCoordinates (endPt2)

Call Rhino.AddLayer (“spicules”)

Call Rhino.AddLayer (“lines”)

Call Rhino.AddLayer (“points”)

Call Rhino.AddLayer (“circles”)

Call Rhino.AddLayer (“spheres”)

Call Rhino.AddLayer (“trajectory1″)

Call Rhino.AddLayer (“trajectory2″)

Call Rhino.AddLayer (“trajectory3″)



objArr = AddNewSpicule(endPt0, endPt1, endPt2, 0)

Call RecursiveGrowth(objArr, gens, origPtCoord, attractorPt, scaleFact, testSphere1, testSphere2, testSphere3)



End Sub



Function RecursiveGrowth(objArr, gens, origPtCoord, attractorPt, scaleFact, testSphere1, testSphere2, testSphere3)



Dim i, currentType1, currentType2, currentType3, arrTypes, Rand1, Rand2, Rand3, RadS, RadSM, RadM, RadML, RadL, RadXL, arrAllSpicules()

Dim newEndPt0(), newEndPt1(), newEndPt2(), newEndPt3()

Dim sphereTest1(), sphereTest2(), sphereTest3()

Dim sphereColor1(), sphereColor2(), sphereColor3()

Dim sphereCtrPt(), trajLine1a, trajLine2a, trajLine3a, trajLine1b, trajLine2b, trajLine3b, trajLine1c, trajLine2c, trajLine3c,trajLine1d, trajLine2d, trajLine3d, trajLine1e, trajLine2e, trajLine3e

Dim sphereObj1(), sphereObj2(), sphereObj3()

Dim objArr1(), objArr2(), objArr3(), labelSphere1, labelSphere2, labelSphere3

Dim startPts1(), startPts2(), startPts3(), craneLine1, craneLine2, craneLine3, testPt1, testPt2, testPt3



For i = 1 To gens

ReDim Preserve objArr1(i)

ReDim Preserve objArr2(i)

ReDim Preserve objArr3(i)

ReDim Preserve sphereTest1(i)

ReDim Preserve sphereTest2(i)

ReDim Preserve sphereTest3(i)

ReDim Preserve sphereColor1(i)

ReDim Preserve sphereColor2(i)

ReDim Preserve sphereColor3(i)

ReDim Preserve sphereObj1(i)

ReDim Preserve sphereObj2(i)

ReDim Preserve sphereObj3(i)

ReDim Preserve startPts1(i)

ReDim Preserve startPts2(i)

ReDim Preserve startPts3(i)

If i<2 Then

objArr1(i) = AddNewSpicule(endPt0, endPt1, endPt2, i)

objArr2(i) = AddNewSpicule(endPt0, endPt1, endPt2, i)

objArr3(i) = AddNewSpicule(endPt0, endPt1, endPt2, i)

Else

RadS = scaleFact * .75

RadSM = scaleFact * 1.15

RadM = scaleFact * 1.25

RadML = scaleFact * .95

RadL = scaleFact * .65

RadXL = scaleFact * .85

arrTypes = Array(RadS, RadSM, RadM, RadML, RadL, RadXL)

Rand1 = Random(2,5)

currentType1 = arrTypes(Rand1)

sphereTest1(i) = Rhino.AddSphere (objArr1(i-1)(1)(4), currentType1)

’sphereColor1(i) = Rhino.AddSphere (objArr1(i-1)(1)(4), currentType1*.25)

‘Call Rhino.ObjectColor (sphereColor1(i), RGB(200, 20+(i*3), 64))

startPts1(i) = SphereIntersect(objArr1(i-1), sphereTest1(i))

objArr1(i) = ClosestSpicule(startPts1(i), attractorPt, i)

If Rhino.IsPointInSurface (testSphere1, objArr1(i)(1)(4)) Then

objArr1(i) = objArr1(i-2)

ElseIf Rhino.IsPointInSurface (testSphere2, objArr1(i)(1)(4)) Then

objArr1(i) = objArr1(i-2)

ElseIf Rhino.IsPointInSurface (testSphere3, objArr1(i)(1)(4)) Then

objArr1(i) = objArr1(i-2)

End If

Rand2 = Random(0,3)

currentType2 = arrTypes(Rand2)

sphereTest2(i) = Rhino.AddSphere (objArr2(i-1)(1)(4), currentType2)

’sphereColor2(i) = Rhino.AddSphere (objArr2(i-1)(1)(4), currentType2*.25)

‘Call Rhino.ObjectColor (sphereColor2(i), RGB(209, 4.25*i, 64))

startPts2(i) = SphereIntersect(objArr2(i-1), sphereTest2(i))

objArr2(i) = ClosestSpicule(startPts2(i), attractorPt, i)

If Rhino.IsPointInSurface (testSphere1, objArr2(i)(1)(4)) Then

objArr2(i) = objArr2(i-2)

ElseIf Rhino.IsPointInSurface (testSphere2, objArr2(i)(1)(4)) Then

objArr2(i) = objArr2(i-2)

ElseIf Rhino.IsPointInSurface (testSphere3, objArr2(i)(1)(4)) Then

objArr2(i) = objArr2(i-2)

End If

Rand3 = Random(0,5)

currentType3 = arrTypes(Rand3)

sphereTest3(i) = Rhino.AddSphere (objArr3(i-1)(1)(4), currentType3)

’sphereColor3(i) = Rhino.AddSphere (objArr3(i-1)(1)(4), currentType3*.25)

‘Call Rhino.ObjectColor (sphereColor3(i), RGB(209, 2.5*i, 64))

startPts3(i) = SphereIntersect(objArr3(i-1), sphereTest3(i))

objArr3(i) = ClosestSpicule(startPts3(i), attractorPt, i)

If Rhino.IsPointInSurface (testSphere1, objArr3(i)(1)(4)) Then

objArr3(i) = objArr3(i-2)

ElseIf Rhino.IsPointInSurface (testSphere2, objArr3(i)(1)(4)) Then

objArr3(i) = objArr3(i-2)

ElseIf Rhino.IsPointInSurface (testSphere3, objArr3(i)(1)(4)) Then

objArr3(i) = objArr3(i-2)

End If

If currentType1 = RadS Then

Call Rhino.ObjectColor (objArr1(i)(0), RGB(235, 91, 46))

ElseIf currentType1 = RadSM Then

Call Rhino.ObjectColor (objArr1(i)(0), RGB(235, 164, 26))

ElseIf currentType1 = RadM Then

Call Rhino.ObjectColor (objArr1(i)(0), RGB(231, 229, 34))

ElseIf currentType1 = RadML Then

Call Rhino.ObjectColor (objArr1(i)(0), RGB(179, 206, 32))

ElseIf currentType1 = RadL Then

Call Rhino.ObjectColor (objArr1(i)(0), RGB(122, 165, 19))

ElseIf currentType1 = RadXL Then

Call Rhino.ObjectColor (objArr1(i)(0), RGB(31, 157, 159))

End If

If currentType2 = RadS Then

Call Rhino.ObjectColor (objArr2(i)(0), RGB(215, 71, 25))

ElseIf currentType2 = RadSM Then

Call Rhino.ObjectColor (objArr2(i)(0), RGB(215, 144, 6))

ElseIf currentType2 = RadM Then

Call Rhino.ObjectColor (objArr2(i)(0), RGB(210, 209, 14))

ElseIf currentType2 = RadML Then

Call Rhino.ObjectColor (objArr2(i)(0), RGB(179, 206, 32))

ElseIf currentType2 = RadL Then

Call Rhino.ObjectColor (objArr2(i)(0), RGB(122, 165, 19))

ElseIf currentType2 = RadXL Then

Call Rhino.ObjectColor (objArr2(i)(0), RGB(31, 157, 159))

End If

If currentType3 = RadS Then

Call Rhino.ObjectColor (objArr3(i)(0), RGB(235, 91, 46))

ElseIf currentType3 = RadSM Then

Call Rhino.ObjectColor (objArr3(i)(0), RGB(235, 164, 26))

ElseIf currentType3 = RadM Then

Call Rhino.ObjectColor (objArr3(i)(0), RGB(231, 229, 34))

ElseIf currentType3 = RadML Then

Call Rhino.ObjectColor (objArr3(i)(0), RGB(179, 206, 32))

ElseIf currentType3 = RadL Then

Call Rhino.ObjectColor (objArr3(i)(0), RGB(122, 165, 19))

ElseIf currentType3 = RadXL Then

Call Rhino.ObjectColor (objArr3(i)(0), RGB(31, 157, 159))

End If

Rhino.DeleteObject (sphereTest1(i))

Rhino.DeleteObject (sphereTest2(i))

Rhino.DeleteObject (sphereTest3(i))

trajLine1a = Rhino.AddLine (objArr1(i)(1)(4), objArr1(i-1)(1)(4))

‘ trajLine1b = Rhino.AddLine (objArr1(i)(1)(0), objArr1(i-1)(1)(0))

‘ trajLine1c = Rhino.AddLine (objArr1(i)(1)(1), objArr1(i-1)(1)(1))

‘ trajLine1d = Rhino.AddLine (objArr1(i)(1)(2), objArr1(i-1)(1)(2))

‘ trajLine1e = Rhino.AddLine (objArr1(i)(1)(5), objArr1(i-1)(1)(5))

‘craneLine1 = Rhino.AddLine (objArr1(i)(1)(4), cranePt)

‘testPt1 = Call Rhino.AddPoint (objArr1(i)(1)(3)(0), objArr1(i)(1)(3)((1)+3), objArr1(i)(1)(3)(2))

‘Call Rhino.AddLine (objArr1(i)(1)(4), testPt1)

Call Rhino.ObjectLayer (trajLine1a, “trajectory1″)

trajLine2a = Rhino.AddLine (objArr2(i)(1)(4), objArr2(i-1)(1)(4))

‘ trajLine2b = Rhino.AddLine (objArr2(i)(1)(0), objArr2(i-1)(1)(0))

‘ trajLine2c = Rhino.AddLine (objArr2(i)(1)(1), objArr2(i-1)(1)(1))

‘ trajLine2d = Rhino.AddLine (objArr2(i)(1)(2), objArr2(i-1)(1)(2))

‘ trajLine2e = Rhino.AddLine (objArr2(i)(1)(5), objArr2(i-1)(1)(5))

‘craneLine2 = Rhino.AddLine (objArr2(i)(1)(4), cranePt)

Call Rhino.ObjectLayer (trajLine2a, “trajectory2″)

trajLine3a = Rhino.AddLine (objArr3(i)(1)(4), objArr3(i-1)(1)(4))

‘ trajLine3b = Rhino.AddLine (objArr3(i)(1)(0), objArr3(i-1)(1)(0))

‘ trajLine3c = Rhino.AddLine (objArr3(i)(1)(1), objArr3(i-1)(1)(1))

‘ trajLine3d = Rhino.AddLine (objArr3(i)(1)(2), objArr3(i-1)(1)(2))

‘ trajLine3e = Rhino.AddLine (objArr3(i)(1)(5), objArr3(i-1)(1)(5))

‘craneLine3 = Rhino.AddLine (objArr3(i)(1)(4), cranePt)

Call Rhino.ObjectLayer (trajLine3a, “trajectory3″)

End If

Next

Rhino.EnableRedraw True

End Function



Function ClosestSpicule(startPts, attractorPt, i)

Dim TestSpicule1, TestSpicule2, TestSpicule3, AllTestArr, RandArr

Dim ClosestDist, ClosestDist1, ClosestDist2, ClosestDist3

Dim RandTest

TestSpicule1 = AddNewSpicule(startPts(0), startPts(1), startPts(3), i)

TestSpicule2 = AddNewSpicule(startPts(2), startPts(0), startPts(3), i)

TestSpicule3 = AddNewSpicule(startPts(1), startPts(2), startPts(3), i)

If i Mod 4 = 0 Then

RandTest = Random(0,2)

If RandTest = 0 Then

ClosestSpicule = TestSpicule1

ElseIf RandTest = 1 Then

ClosestSpicule = TestSpicule2

ElseIf RandTest = 2 Then

ClosestSpicule = TestSpicule3

End If

Else If i Mod 5 = 0 Then

ClosestSpicule = TestSpicule3

ElseIf i Mod 6 = 0 Then

ClosestSpicule = TestSpicule2

Else

ClosestDist1 = Rhino.Distance(TestSpicule1(1)(5), attractorPt)

ClosestDist2 = Rhino.Distance(TestSpicule2(1)(5), attractorPt)

ClosestDist3 = Rhino.Distance(TestSpicule3(1)(5), attractorPt)

If ClosestDist1 < ClosestDist2 Then

ClosestDist = ClosestDist1

Else

ClosestDist = ClosestDist2

End If

If ClosestDist > ClosestDist3 Then

ClosestDist = ClosestDist3

End If

If ClosestDist = ClosestDist1 Then

ClosestSpicule = TestSpicule1

ElseIf ClosestDist = ClosestDist2 Then

ClosestSpicule = TestSpicule2

ElseIf ClosestDist = ClosestDist3 Then

ClosestSpicule = TestSpicule3

End If

End If

End If

End Function



Function SphereIntersect(objArr, sphereTest)

Dim ptOnBaseLineA, ptOnBaseLineB, ptOnBaseLineC, ptOnTopLine

Dim newEndPtA, newEndPtB, newEndPtC, newEndPtTop

ptOnBaseLineA = Rhino.CurveSurfaceIntersection(objArr(0)(2), sphereTest)

If IsArray(ptOnBaseLineA) Then

Call Rhino.AddPoint (ptOnBaseLineA(0,1))

newEndPtA = Rhino.FirstObject

newEndPtA = Rhino.PointCoordinates (newEndPtA)

Else

newEndPtA = Rhino.AddPoint (objArr(1)(1))

newEndPtA = Rhino.PointCoordinates (newEndPtA)

End If

ptOnBaseLineB = Rhino.CurveSurfaceIntersection(objArr(0)(0), sphereTest)

If IsArray(ptOnBaseLineB) Then

Call Rhino.AddPoint (ptOnBaseLineB(0,1))

newEndPtB = Rhino.FirstObject

newEndPtB = Rhino.PointCoordinates (newEndPtB)

Else

newEndPtB = Rhino.AddPoint (objArr(1)(2))

newEndPtB = Rhino.PointCoordinates (newEndPtB)

End If

ptOnBaseLineC = Rhino.CurveSurfaceIntersection(objArr(0)(1), sphereTest)

If IsArray(ptOnBaseLineC) Then

Call Rhino.AddPoint (ptOnBaseLineC(0,1))

newEndPtC = Rhino.FirstObject

newEndPtC = Rhino.PointCoordinates (newEndPtC)

Else

newEndPtC = Rhino.AddPoint (objArr(1)(0))

newEndPtC = Rhino.PointCoordinates (newEndPtC)

End If

”””””

ptOnTopLine = Rhino.CurveSurfaceIntersection(objArr(0)(3), sphereTest)

If IsArray(ptOnTopLine) Then

Call Rhino.AddPoint (ptOnTopLine(0,1))

newEndPtTop = Rhino.FirstObject

newEndPtTop = Rhino.PointCoordinates (newEndPtTop)

Else

newEndPtTop = Rhino.AddPoint (objArr(1)(5))

newEndPtTop = Rhino.PointCoordinates (newEndPtTop)

End If

SphereIntersect = Array(newEndPtA, newEndPtB, newEndPtC, newEndPtTop)

End Function



Function Random(min, max)

Randomize()

Random = Int((max – min) * Rnd + min)

End Function



Function AddNewSpicule(startPt0, startPt1, startPt2, i)

AddNewSpicule = Null

Dim centerPt, newCenterPt, topCenterPt, strLabel

Dim baseLine1, baseLine2, baseLine3, baseLine4Top, dblRadius, crvNormal

Dim triangle, offTriangle, offTriangle2

Dim strCircle, CirclePlane, offCirclePlane1, offCirclePlane2, offCircleCurve1, offCircleCurve2

Dim arrPlane1, arrPlane2, arrPlane3, arrPlane4Top, newCirc1, newCirc2, newCirc3, newCirc4Top, pipeSurf1, pipeSurf2, pipeSurf3, pipeSurf4Top

Dim baseLine1Ext, baseLine2Ext, baseLine3Ext, baseLine4ExtTop, ExtPt1, ExtPt2, ExtPt3, ExtPt4

strCircle = Rhino.AddCircle3Pt (startPt0, startPt1, startPt2)

centerPt = Rhino.CircleCenterPoint (strCircle)

CirclePlane = Rhino.AddPlanarSrf (Array(strCircle))

crvNormal = Rhino.CurveNormal(strCircle)

dblRadius = Rhino.CircleRadius (strCircle)

offCirclePlane1 = Rhino.OffsetSurface(CirclePlane(0), dblRadius * 0.707)

newCenterPt = Rhino.SurfaceAreaCentroid(offCirclePlane1)

offCirclePlane2 = Rhino.OffsetSurface(offCirclePlane1, dblRadius * 1.25)

topCenterPt = Rhino.SurfaceAreaCentroid(offCirclePlane2)

baseLine1 = Rhino.AddLine(newCenterPt(0), startPt0)

baseLine1Ext = Rhino.ExtendCurveLength (baseLine1, 0, 1, dblRadius * .45)

ExtPt1 = Rhino.CurveEndPoint (baseLine1Ext)

pipeSurf1 = Rhino.AddCylinder (newCenterPt(0), ExtPt1, dblRadius*0.07)

Call Rhino.ObjectLayer (baseLine1, “lines”)

Call Rhino.ObjectLayer (pipeSurf1, “spicules”)

‘Call Rhino.ObjectColor (pipeSurf1, RGB(209, 2.5*i, 64))

‘Call Rhino.ObjectColor (baseLine1, RGB(209, 2.5*i, 64))



baseLine2 = Rhino.AddLine(newCenterPt(0), startPt1)

baseLine2Ext = Rhino.ExtendCurveLength (baseLine2, 0, 1, dblRadius * .45)

ExtPt2 = Rhino.CurveEndPoint (baseLine2Ext)

pipeSurf2 = Rhino.AddCylinder (newCenterPt(0), ExtPt2, dblRadius*0.07)

Call Rhino.ObjectLayer (baseLine2, “lines”)

Call Rhino.ObjectLayer (pipeSurf2, “spicules”)

‘Call Rhino.ObjectColor (pipeSurf2, RGB(20+(i*3), 200, 64))

‘Call Rhino.ObjectColor (baseLine2, RGB(20+(i*3), 200, 64))

baseLine3 = Rhino.AddLine(newCenterPt(0), startPt2)

baseLine3Ext = Rhino.ExtendCurveLength (baseLine3, 0, 1, dblRadius * .45)

ExtPt3 = Rhino.CurveEndPoint (baseLine3Ext)

pipeSurf3 = Rhino.AddCylinder (newCenterPt(0), ExtPt3, dblRadius*0.07)

Call Rhino.ObjectLayer (baseLine3, “lines”)

Call Rhino.ObjectLayer (pipeSurf3, “spicules”)

‘Call Rhino.ObjectColor (pipeSurf3, RGB(150, 20+(i*2), 64))

‘Call Rhino.ObjectColor (baseLine3, RGB(150, 20+(i*2), 64))



baseLine4Top = Rhino.AddLine(newCenterPt(0), topCenterPt(0))

baseLine4ExtTop = Rhino.ExtendCurveLength (baseLine4Top, 0, 1, dblRadius * .45)

ExtPt4 = Rhino.CurveEndPoint (baseLine4ExtTop)

pipeSurf4Top = Rhino.AddCylinder (newCenterPt(0), ExtPt4, dblRadius*0.07)

Call Rhino.ObjectLayer (baseLine4Top, “lines”)

Call Rhino.ObjectLayer (pipeSurf4Top, “spicules”)

‘Call Rhino.ObjectColor (pipeSurf4Top, RGB(175, i*4, 64))

‘Call Rhino.ObjectColor (baseLine4Top, RGB(175, i*4, 64))

Dim arrSpiculeLines, arrSpiculePoints, arrSpiculeVectors

‘Dim CapShere1 : CapShere1 = Rhino.AddSphere(newCenterPt(0), dblRadius*.25)

Dim CapShere2 : CapShere2 = Rhino.AddSphere(ExtPt4, dblRadius*.07)

Dim CapShere3 : CapShere3 = Rhino.AddSphere(ExtPt1, dblRadius*.07)

Dim CapShere4 : CapShere4 = Rhino.AddSphere(ExtPt2, dblRadius*.07)

Dim CapShere5 : CapShere5 = Rhino.AddSphere(ExtPt3, dblRadius*.07)

Call Rhino.ObjectLayer (CapShere2, “spicules”)

Call Rhino.ObjectLayer (CapShere3, “spicules”)

Call Rhino.ObjectLayer (CapShere4, “spicules”)

Call Rhino.ObjectLayer (CapShere5, “spicules”)

Rhino.DeleteObject strCircle

Rhino.DeleteObject CirclePlane(0)

Rhino.DeleteObject offCirclePlane1

Rhino.DeleteObject offCirclePlane2



‘arrSpiculeLines = Array(baseLine1Ext, baseLine2Ext, baseLine3Ext, baseLine4ExtTop)

arrSpiculeLines = Array(baseLine1, baseLine2, baseLine3, baseLine4Top)

arrSpiculePoints = Array(startPt0, startPt1, startPt2, centerPt, newCenterPt(0), topCenterPt(0))

arrSpiculeVectors = Array(crvNormal, dblRadius)

Call Rhino.ObjectLayer (strCircle, “circles”)

AddNewSpicule = Array(arrSpiculeLines, arrSpiculePoints, arrSpiculeVectors)



End Function
